ABS
ABS+ is a modified version of standard ABS (Acrylonitrile Butadiene Styrene) created by blending additives with the base material. This enhancement improves the material's performance, making it highly suitable for 3D printing applications. The modifications provide a better balance between rigidity and toughness, making ABS+ a preferred choice for parts that require high durability and heat resistance.
Advantages
Exceptional Printing Precision & Stability
Large-Scale Industrial Capability
Advanced Monitoring & Automation
Quiet, High-Speed Performance
| Filament Diameter | 1.75mm/2.85mm/ 3.50mm |
| Net Weight | 1KG \ Inner Box Dimension: 206*71*208mm \ G.W.: 1.35KG |
| Package | 1KG*10PCs \ Outer Carton Dimension: 382*226*433mm \ G.W.: 14KG/CTN |
| Property | Unit | Test Standard | Typical Value |
| Density | g/cm³ | ASTM D792 | 1.05-1.18 |
| MFR (220℃, 2.16KG) | g/10min | ASTM D1238 | 12-19 |
| Water absorption | (saturation, 23℃) | ASTM D5770 | 0.3% |
| Notch Impact Strength(IZOD, 23℃) | KJ/㎡ | ISO 180 | ≥3 |
| Tensile Strength | MPa | ASTM D638 | ≥46 |
| Elongation | % | ASTM D638 | 15 |
| Flexural Strength | MPa | ASTM D790 | ≥46 |
| Elongation at Break | % | ASTM D638 | ≥3.0 |
Storage
During transportation and storage, the temperature should not exceed 65°C. This product should be stored in a dry, well-ventilated warehouse, and precautions should be taken against moisture.
Drying Procedure
It is recommended to test the moisture content of the resin before processing. If the moisture content exceeds 0.3%, pre-drying is required. Typical drying conditions: 3-4 hours at 60°C.
Before processing, it is recommended to keep the material dry for easier processing. Keep the material sealed before use and ensure the container is tightly closed after use.
Production Equipment
ABS+ modified raw material can generally be processed on standard equipment. The proper processing temperature is key to achieving good product quality.

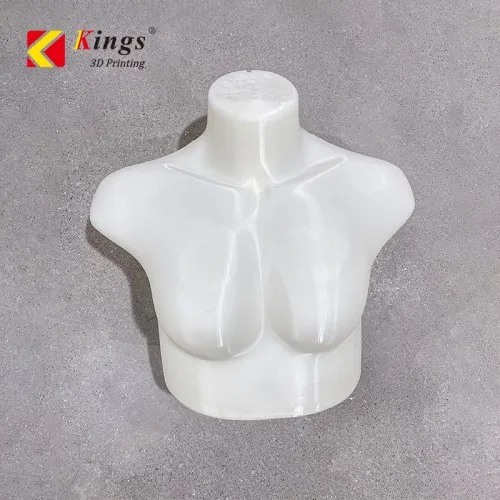

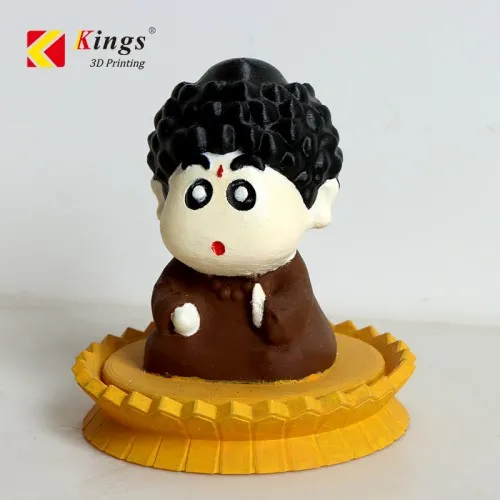

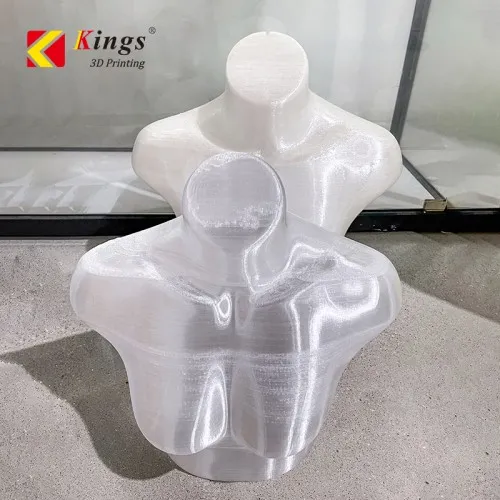

Printing Samples
